Knowledge About Heavy Duty Connector Insert

Heavy-duty connector inserts are essential components used in industrial environments to ensure reliable electrical connections. Here is a comprehensive guide to understanding heavy-duty connector inserts:

Overview

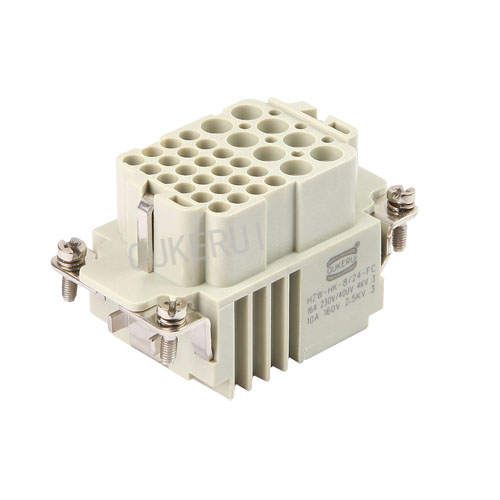

Heavy-duty connector inserts are the internal parts of heavy-duty connectors. They are designed to handle high mechanical stress, resist environmental factors, and provide secure and reliable connections in harsh conditions. These inserts are commonly used in industries such as automation, manufacturing, transportation, and energy.

Key Components

1. Housing: The outer shell that protects the insert. It is typically made from robust materials like aluminum or thermoplastic.

2. Contacts: These are the conductive parts of the insert that make the electrical connection. They can be male (pins) or female (sockets).

3. Terminals: The points where the wires are attached to the contacts.

4. Locking Mechanism: Ensures the insert stays securely connected within the housing.

Types of Heavy-Duty Connector Inserts

1. Modular Inserts: Allow customization with different types of modules (e.g., power, signal, pneumatic) within a single connector housing.

2. Fixed Inserts: Predefined configuration and fixed number of contacts, designed for specific applications.

3. Mixed Inserts: Combine power and signal contacts within the same insert.

Specifications

1. Current Rating: Maximum current the insert can handle, usually ranging from a few amps to several hundred amps.

2. Voltage Rating: Maximum voltage the insert can withstand, often ranging from low voltage (12V) to high voltage (1000V or more).

3. Contact Resistance: Low resistance is crucial for efficient power transmission.

4. Temperature Range: The operational temperature range, often from -40°C to +125°C or higher.

5. Ingress Protection (IP) Rating: Indicates the level of protection against dust and water (e.g., IP65, IP67).

Selection Criteria

1. Electrical Requirements: Current and voltage ratings, number of contacts.

2. Environmental Conditions: Temperature, humidity, exposure to chemicals or UV light.

3. Mechanical Stress: Vibration, shock, and mechanical load.

4. Connector Size: Space constraints and the size of the cable.

5. Compliance: Industry standards and certifications (e.g., IEC, UL).

Applications

1. Industrial Automation: Connecting machinery and control systems.

2. Transportation: Railway, automotive, and aerospace applications.

3. Energy Sector: Wind turbines, solar panels, and power distribution.

4. Robotics: Providing reliable connections in robotic systems.

Installation and Maintenance

- Proper Termination: Ensure wires are properly terminated to avoid loose connections.

- Regular Inspection: Periodically inspect connectors for signs of wear or damage.

- Cleaning: Keep contacts clean to maintain good electrical conductivity.

- Replacement: Replace damaged or worn-out inserts promptly.

Manufacturers

Some of the leading manufacturers of heavy-duty connector inserts include:

- Harting

- TE Connectivity

- Weidmüller

- Molex

- Phoenix Contact

These manufacturers offer a wide range of products designed to meet various industrial requirements and standards.

Conclusion

Heavy-duty connector inserts are crucial for ensuring reliable electrical connections in demanding industrial environments. By understanding their components, types, specifications, and selection criteria, you can choose the right inserts for your applications and ensure optimal performance and longevity of your electrical systems.
