How Does the Drain Work on a Bathtub?

A bathtub drain might seem simple on the surface, but it’s part of a carefully designed plumbing system that allows water to exit your tub efficiently, while also preventing bad odors and potential overflows. Let’s break down how a bathtub drain works from the moment you pull the plug.

1. The Main Components

To understand how a bathtub drain works, it helps to know the key parts involved:

- Drain Opening: The hole at the bottom of the tub where water flows out.

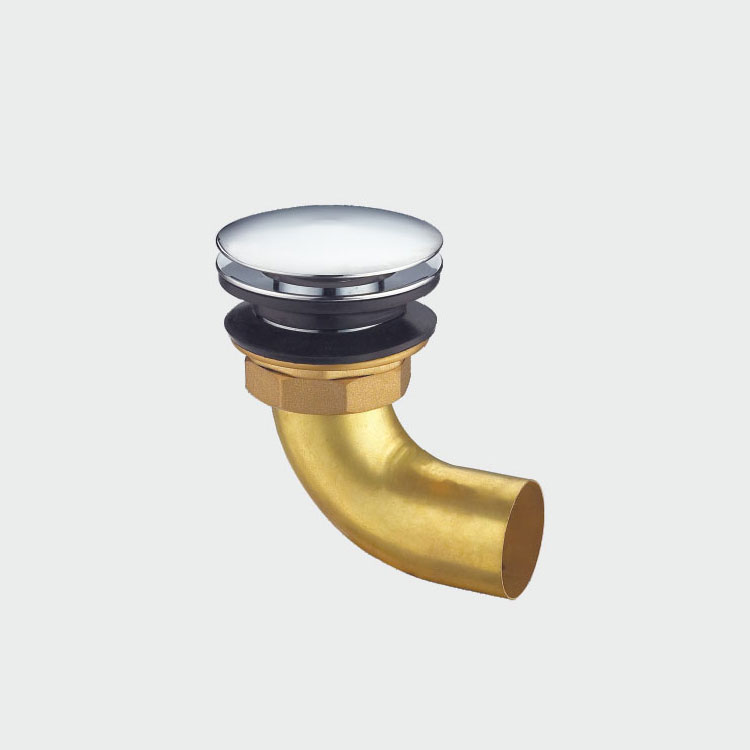

- Drain Stopper: A mechanism that opens or closes the drain to hold or release water.

- Overflow Drain: A safety feature located near the top of the tub to prevent overflows.

- Waste Pipe: The horizontal pipe that carries water from the tub to the main drain line.

- P-Trap: A U-shaped pipe that holds water to block sewer gases from coming back up.

2. When the Stopper Is Closed

When you fill your bathtub, the stopper is in the closed position, creating a seal over the drain hole. This prevents water from escaping, allowing the tub to fill. The stopper can be operated in different ways depending on the type—push-pull, lift-and-turn, toe-touch, or with a trip lever connected to the overflow plate.

3. Opening the Drain

When you open the stopper, water flows down through the drain opening into the waste pipe. From there, it travels through the P-trap, which curves downward and then up again. This bend holds a small amount of water at all times, forming a seal that keeps sewer gases from entering your bathroom.

4. Role of the Overflow Drain

The overflow drain is the small opening near the top of the tub, usually under the spout. It connects to the main drain line and helps prevent flooding if someone accidentally leaves the water running. If the water level gets too high, it flows into the overflow drain and safely down the same drainpipe.

5. Gravity and Venting

The bathtub drain works primarily by gravity—water flows downward through sloped pipes. But air needs to flow through the system too. That’s where venting comes in. A vent pipe (connected to the main stack or an air admittance valve) ensures that air pressure stays balanced, preventing suction that could disrupt water flow or dry out the P-trap.

Final Thoughts

A bathtub drain system is more than just a hole in the tub—it’s a combination of mechanisms designed to manage water efficiently and safely. With a properly functioning stopper, overflow drain, P-trap, and ventilation, your bathtub can drain smoothly without odors or plumbing issues. Whether you're soaking in a bubble bath or cleaning up quickly, you can thank this smart little system for keeping things flowing.
